Dense Phase Pneumatic Conveying Bin Pump - Industrial Material Handling Equipment

Name: Dense Phase Pneumatic Conveying Bin Pump - Industrial Material Handling Equipment
Brand: Hefei Hengcheng Industrial Equipment Technology Co., Ltd
SKU: PCD24/H PCD26/H PCD28/H PCD30/H
Availability: InStock

Produkt-Details

Herkunftsort: China, Hefei

Markenname: Hengcheng

Zertifizierung: ISO CE

Modellnummer: PCD24/H PCD26/H PCD28/H PCD30/H

Zahlungs-u. Verschiffen-Ausdrücke

Min Bestellmenge: 1 Satz

Preis: Verhandlungsfähig

Verpackung Informationen: Standardverpackung

Lieferzeit: 90 Tage

Zahlungsbedingungen: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Versorgungsmaterial-Fähigkeit: 5 Sätze \ Monat

Erhalten Sie besten Preis

Produkt-Details

Produkt-Beschreibung

Hervorheben:
                                                                                                                                                                                                                                                                                                                                                                                Dense phase pneumatic conveying pump, Industrial material handling equipment, Pneumatic conveying bin pump


Name:	Kegelpumpe	Typ:	PCD
Material für Schiffe:	Standardmäßiger Kohlenstoffstahl, optional Edelstahl, unterstützt eine individuelle Korrosionsschutz	Luft-Material-Verhältnis:	≥ 30 kg (Asche)/kg (Gas)
Leistung:	Dichte-Phase-Positivdruckübertragung	Anwendungen:	Kraftwerksfliegende Asche, Zement, Rohstoffe, Mineralpulver usw.
Transportmittel:	Pulver	Anwendung:	Kraftwerke, Metallurgie, Bergbau, chemische Industrie usw.
Zweck:	Transport von Pulverstoffen	Ventil-Konfiguration:	Das Zufuhrventil verwendet ein konisches Ventil und das Auslassventil verwendet ein verschleißfestes

Name:	Kegelpumpe
Typ:	PCD
Material für Schiffe:	Standardmäßiger Kohlenstoffstahl, optional Edelstahl, unterstützt eine individuelle Korrosionsschutz
Luft-Material-Verhältnis:	≥ 30 kg (Asche)/kg (Gas)
Leistung:	Dichte-Phase-Positivdruckübertragung
Anwendungen:	Kraftwerksfliegende Asche, Zement, Rohstoffe, Mineralpulver usw.
Transportmittel:	Pulver
Anwendung:	Kraftwerke, Metallurgie, Bergbau, chemische Industrie usw.
Zweck:	Transport von Pulverstoffen
Ventil-Konfiguration:	Das Zufuhrventil verwendet ein konisches Ventil und das Auslassventil verwendet ein verschleißfestes

Dense Phase Pneumatic Conveying Bin Pump - Industrial Material Handling Equipment

Dense Phase Pneumatic Conveying Vessel Pump: Tailored for High-Precision Material Handling

Product Overview

Engineered with industry-specific demands in mind, our Dense Phase Pneumatic Conveying Vessel Pump delivers gentle, high-capacity powder transfer—optimized for minimal air consumption and zero material degradation. It’s the go-to solution for sectors requiring strict process control:

✔ Cement Plants: Effortlessly handles cement, raw meal, and fly ash with anti-caking design

✔ Power Stations: Specialized for fly ash and limestone powder conveying, adapting to boiler operation rhythms

✔ Mining & Minerals: Built to transfer silica, alumina, bentonite, and other abrasive powders

✔ Food & Pharma: Food-grade compliant for sugar, starch, and powdered additives—meeting GMP standards

Key Advantages Over Mechanical & Dilute Phase Conveyors:

→ 80% lower energy consumption vs dilute phase systems, slashing operational costs

→ <0.1% material breakage rate—preserves particle integrity for consistent product quality

→ Fully sealed, dust-free system—eliminates contamination risks and meets environmental regulations

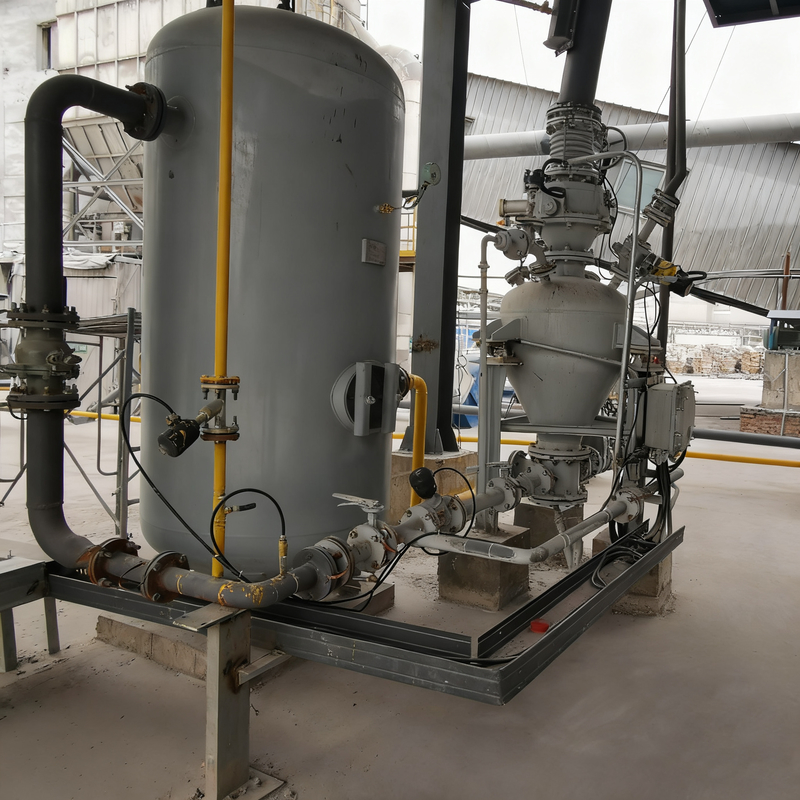

Dense Phase Pneumatic Conveying Bin Pump - Industrial Material Handling Equipment 1
Large Capacity Pneumatic Conveying Bin Pump Parameter Table

Conveying Material	Bulk Density (t/m³)	Model	PCD24/H	PCD26/H	PCD28/H	PCD30/H	Conveying Distance
Conveying Material	Bulk Density (t/m³)	Specification	16~20m3	18~22m3	20~27m3	26~32m3	Level (m)	Level (m)
Pulverized Coal	0.5	Delivery Volume (t/h)	50~80	60~90	65~110	80~130	200	20
Fly Ash	0.75		75~125	85~130	95~160	125~190	200	20
Limestone Powder/Mineral Powder	0.8		80~130	90~140	100~170	130~200	200	20
Cement/Raw Meal	1		100~150	115~175	130~215	165~260	200	20

Long-distance Pneumatic Conveying Bin Pump Parameter Table

Conveying Material	Bulk Density (t/m3)	Model	PCD24/L	PCD26/L	PCD28/L	PCD30/L	Conveying Distance
Conveying Material	Bulk Density (t/m3)	Specification	16~20m3	18~22m3	20~27m3	26~32m3	Level (m)	Level (m)
Pulverized Coal	0.5	Delivery Volume (t/h)	20~40	25~45	30~55	45~65	1000	25
Fly Ash	0.75		35~60	45~65	45~80	65~95	1000	25
Limestone Powder/Mineral Powder	0.8		40~65	45~70	50~85	70~100	1000	25
Cement/Raw Meal	1		50~80	55~90	65~110	90~120	1000	25

Conventional Grid Pneumatic Conveying Bin Pump Parameter Table

Conveying Material	Bulk Density(t/m³)	Model	PCD18/N	PCD20/N	PCD20/N	Reference Conveying Distance
Conveying Material	Bulk Density(t/m³)	Specification	5.0~6.7m³	7.0~10.0m³	10.0~15.0m³	Level (m)	Vertical (m)
Pulverized Coal	0.5	Delivery Volume (t/h)	12~20	16~32	25~50	500	30
Fly Ash	0.75		18~32	25~48	35~70	50
Limestone Powder/Mineral Powder	0.8		20~35	26~51	38~75	500	30
Cement/Raw Meal	1.0		24~42	32~65	48~95	500	30
Silicon Powder	1.2		28~50	40~75	55~115	500	30

Parameter Table Of Small Size Pneumatic Conveying Bunker Pump

Material	Bulk Density(t/m³)	Model	PCD08/M	PCD10/M	PCD12/M	PCD14/M	Reference Conveying Distance
Material	Bulk Density(t/m³)	Specification	0.2~0.5m³	0.6~1.6m³	1.5~2.5m³	2.5~5.0m³	Level (m)	Vertical (m)
Pulverized Coal	0.5	Delivery Volume (t/h)	0.5~1.8	1.5~5.5	5.0~9.0	8.0~18.0	100	20
Fly Ash	0.75		0.9~2.8	2.5~8.5	7.0~14.0	12.0~27.0	100	20
Limestone Powder/Mineral Powder	0.8		1.0~3.0	3.0~9.0	8.0~15.0	12.0~28.0	100	20
Cement/Raw Meal	1.0		1.2~3.5	3.5~11.5	10.0~18.0	16.0~36.0	100	20
Silicon Powder	1.2		1.5~4.0	4.5~13.5	12.0~20.0	19.0~43.0	100	20

Dense Phase Pneumatic Conveying Bin Pump - Industrial Material Handling Equipment 2

Material Options (Tailored to Material Properties)
▸ Carbon steel (standard choice for general non-corrosive, non-abrasive materials)▸ 304/316L stainless steel (optimized for corrosive materials like chemicals, food, or pharmaceuticals)▸ Ceramic-lined (specialized for highly abrasive materials—minimizes wear and extends service life)

Why Choose Our System?
Superior Reliability Backed by Innovation
• Patented pressure vessel structure – delivers 20% longer service life than industry counterparts
• Intelligent auto pressure regulation – ensures consistent material flow without pulsation or blockages
Intuitive & Connected Smart Operation
• PLC + touchscreen control panel – pre-storable recipes for quick switching between different materials
• 24/7 remote monitoring – real-time performance tracking and data analysis via mobile app or PC platform
Compliant & Trusted for ASEAN Markets
• CE & ATEX dual certification – fully meets regional safety and environmental standards
• Localized technical support – tailored to ASEAN industrial requirements and regulations

Streamlined 4-Step Order & Implementation Process
Detailed Consultation – Share your material specifications, throughput, and on-site constraints
Custom Solution Design – Receive personalized drawing layouts, technical proposals, and transparent quotes
Factory Acceptance Test (FAT) – Witness and verify equipment performance before shipment
Comprehensive Installation Support – Choose between on-site guidance or remote debugging assistance
