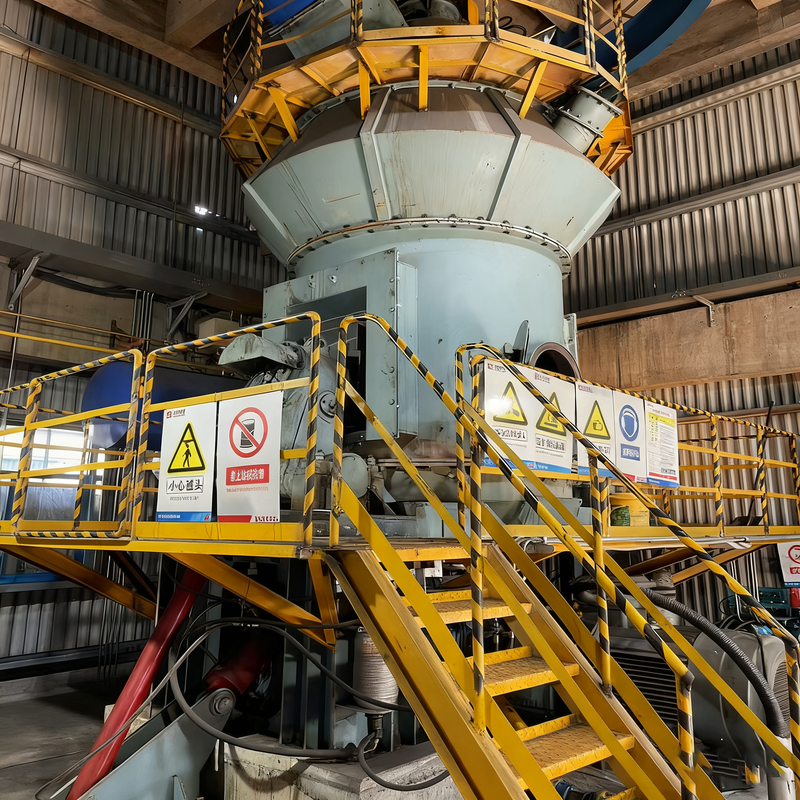

Industrial Gypsum Vertical Mill | Gypsum Vertical Roller Mill High Capacity & Superior Fineness

Name: Industrial Gypsum Vertical Mill | Gypsum Vertical Roller Mill High Capacity & Superior Fineness
Brand: Hefei Hengcheng Industrial Equipment Technology Co., Ltd
SKU: HVM1700 HVM1900 HVM2200 HVM2400 HVM2800 HVM3400 HVM3700 HVM4200
Availability: InStock

Produkt-Details

Herkunftsort: China

Markenname: Hengcheng

Zertifizierung: ISO Patent Certificate High-Tech Product Certificate

Modellnummer: HVM1700 HVM1900 HVM2200 HVM2400 HVM2800 HVM3400 HVM3700 HVM4200

Zahlungs-u. Verschiffen-Ausdrücke

Min Bestellmenge: 1 Satz

Preis: Verhandlungsfähig

Verpackung Informationen: Standardverpackung

Lieferzeit: 120 Tage

Zahlungsbedingungen: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Versorgungsmaterial-Fähigkeit: 5 Sätze/Monat

Erhalten Sie besten Preis

Produkt-Details

Produkt-Beschreibung

Hervorheben:
                                                                                                                                                                                                                                                                                                                                                                                industrial gypsum vertical mill, gypsum vertical roller mill, high capacity gypsum grinding mill


Produktname:	Gips-vertikale Mühle	Mahlleistung (kg/kWh):	25-30 kg/kWh
Feinheit schleifen:	200–325 Mesh (einstellbarer Bereich)	Hauptmotorleistung:	550 - 5000 kW
Feuchtigkeitsgehalt von Rohgips:	≤ 10%	Produktfeuchtigkeitsgehalt:	≤ 0,5%
Bewerbungsbereich:	Europäische Gemeinschaft, Wirtschafts- und Sozialausschuß, Wirtschafts- und Sozialausschuß	Installation:	Leitfaden für Ingenieur
Nennleistung (kW):	110-400 kW	Geeignete Materialien:	Naturgips, REA-Gips, Phosphorgips, Citrogips

Produktname:	Gips-vertikale Mühle
Mahlleistung (kg/kWh):	25-30 kg/kWh
Feinheit schleifen:	200–325 Mesh (einstellbarer Bereich)
Hauptmotorleistung:	550 - 5000 kW
Feuchtigkeitsgehalt von Rohgips:	≤ 10%
Produktfeuchtigkeitsgehalt:	≤ 0,5%
Bewerbungsbereich:	Europäische Gemeinschaft, Wirtschafts- und Sozialausschuß, Wirtschafts- und Sozialausschuß
Installation:	Leitfaden für Ingenieur
Nennleistung (kW):	110-400 kW
Geeignete Materialien:	Naturgips, REA-Gips, Phosphorgips, Citrogips

Industrial Gypsum Vertical Mill | Gypsum Vertical Roller Mill High Capacity & Superior Fineness

Product Overview

The gypsum vertical mill (often referred to as vertical roller mill) serves as the core equipment in modern gypsum powder production lines. It primarily processes lump gypsum—natural gypsum, desulfurized gypsum, and phosphogypsum included—into gypsum powder via rolling, grinding, and drying. The resulting powder is later used for manufacturing building gypsum, gypsum boards, and similar products.

Specifications And Technical Parameters Of HVM Gypsum Vertical Mill

Model	HVM2500	HVM2800	HVM3400	HVM3700	HVM4200	HVM4500	HVM4800	HVM5100	HVM5600
Grinding Table Median Diameter(mm)	2500	2800	3400	3700	4200	4500	4800	5100	5600
Capacity(t/h)	85-100	130-160	190-240	240-300	320-400	400-500	440-550	550-670	600-730
Raw Material Moisture	＜10%
Raw Meal Fineness	R0.08＜12%		R0.08＜14%
Raw Meal Moistrue	≤1%
Main Motor Power(kW)	800/900	1120/1250	1800/2000	2500/2800	3150/3350	3800/4200	4200/4500	5000/5400	5600/6000
Illustrate	Re:Raw materials bond index≤13kWh/t

I. Core Working Principle

The vertical mill integrates rolling, grinding, drying, and classifying into a single operation, with

the process detailed below: Feeding & Conveying: Post-crushing lump gypsum is fed into the mill by an air-lock feeder

and lands on the rotating grinding disc’s center. Rolling & Grinding: Motor-driven grinding disc rotates to move gypsum

materials. Hydraulic system applies pressure to press grinding rollers against the material layer, crushing materials between

rollers and disc. Hot Air Drying: Hot air (from hot air furnace or industrial waste heat) enters from the mill bottom, fully

contacting crushed materials to quickly dry out moisture. Classifying & Collecting: Hot air transports dried fine powder to

the top classifier. Qualified powder (finished product) is collected via a dust collector (e.g., bag filter); unqualified coarse

powder falls back for re-grinding.

II. Main Equipment Structure

A typical gypsum vertical mill mainly consists of the following components:

Grinding Disc: The core component that carries materials and rotates.

Grinding Rollers: Usually 2 to 4 in number, used for rolling and crushing materials.

Reducer: Reduces the motor speed and provides high torque for the grinding disc.

Classifier: Located at the top of the mill, it can be dynamic or static, and is used to control the fineness of the finished product.

Hydraulic System: Provides grinding pressure for the grinding rollers, and can automatically lift or lower the rollers for maintenance.

Motor: The power source of the equipment.

Machine Shell and Foundation: Supports and seals the entire system.

Get a Free Quote Now!

Tell us your production requirements (capacity, fineness, raw material type), and our engineers will provide a personalized solution within 24 hours.

Tel:+86 551-65176070

Email: margo@hfvrm.com

Website: www.verticalgrindingmills.com

"We transform gypsum into value—efficiently, stably, and sustainably."

Note: All parameters are subject to customization. Contact us for detailed technical drawings and case studies.
